Tidal Harmonic Analysis of Tide Gauge Data
This notebook demonstrates how to:
Parse a National Oceanography Centre (NOC/BODC) tide gauge record.
Perform harmonic analysis using UTide via
pyfvcom2.tide.analyse_harmonics.Compare the derived amplitudes and phases against TPXO10 Atlas harmonics at the same location.
Overlay the reconstructed tidal signal on the observed record.
Dataset: Devonport (P002) sea-level record for December 2025, 15-minute sampling, referenced to Admiralty Chart Datum (ACD). Sourced from BODC under the Open Government Licence.
TPXO: TPXO10 Atlas (30 arc-minute resolution), elevation constituents.
[1]:
import os
import numpy as np
import matplotlib.pyplot as plt
from datetime import datetime
from netCDF4 import date2num
from pyfvcom2.tide import analyse_harmonics, DEFAULT_CONSTIT, MJD_ZERO_POINT
from pyfvcom2.interpolation import InterpolationCoordinates, TPXOInterpolator
from pyfvcom2.tide_reader import TPXOComplexHarmonicsReader, get_tpxo_complex_harmonics_names
# ── Data paths ────────────────────────────────────────────────────────────────
DATA_DIR = os.path.expanduser('~/data/pyfvcom2_doc')
GAUGE_FILE = f'{DATA_DIR}/TideGuage/Devonport/Dec2025/DEV2512.txt'
TPXO_DIR = f'{DATA_DIR}/TPXO/DATA/Atlas10v2'
# Devonport gauge coordinates
GAUGE_LAT = 50.36839
GAUGE_LON = -4.18525
N_HEADER = 12 # fixed-width header lines in the BODC file
/local1/data/scratch/jcl/miniconda/miniconda3/envs/pyfvcom2/lib/python3.11/site-packages/numpy/lib/_format_impl.py:838: VisibleDeprecationWarning: dtype(): align should be passed as Python or NumPy boolean but got `align=0`. Did you mean to pass a tuple to create a subarray type? (Deprecated NumPy 2.4)
array = pickle.load(fp, **pickle_kwargs)
1. Load and parse the tide gauge data
The BODC fixed-width format has 12 header lines followed by records with columns: cycle number, date, time, surface elevation (m ACD), residual (m). Values flagged M (unlikely to be realistic) are replaced with NaN; UTide handles gaps and missing data internally.
[2]:
dates = []
elevations = []
flagged = []
with open(GAUGE_FILE) as f:
for _ in range(N_HEADER):
next(f)
for line in f:
line = line.strip()
if not line:
continue
parts = line.split()
dates.append(datetime.strptime(f'{parts[1]} {parts[2]}', '%Y/%m/%d %H:%M:%S'))
is_flagged = parts[3].endswith('M')
flagged.append(is_flagged)
elevations.append(float(parts[3].rstrip('M')))
dates = np.array(dates)
elevations = np.array(elevations, dtype=float)
flagged = np.array(flagged)
# Replace flagged values with NaN
elevations[flagged] = np.nan
print(f'Records loaded : {len(dates)}')
print(f'Flagged (M) : {flagged.sum()}')
print(f'Period : {dates[0]} → {dates[-1]}')
print(f'Mean elev (ACD) : {np.nanmean(elevations):.3f} m')
print(f'Elev range : {np.nanmin(elevations):.3f} – {np.nanmax(elevations):.3f} m')
Records loaded : 2975
Flagged (M) : 597
Period : 2025-12-01 00:15:00 → 2025-12-31 23:45:00
Mean elev (ACD) : 3.639 m
Elev range : 1.131 – 6.086 m

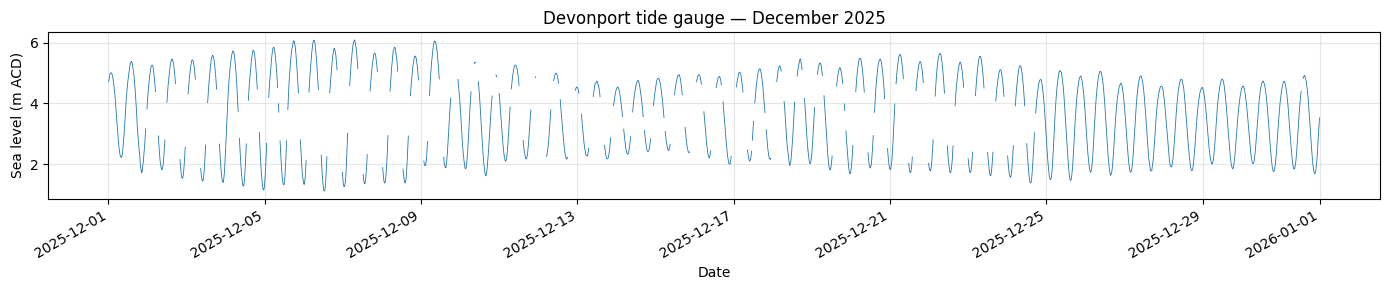

[3]:
fig, ax = plt.subplots(figsize=(14, 3))
ax.plot(dates, elevations, lw=0.6, color='C0', label='Observed')
ax.set_ylabel('Sea level (m ACD)')
ax.set_xlabel('Date')
ax.set_title('Devonport tide gauge — December 2025')
ax.grid(True, alpha=0.3)
fig.autofmt_xdate()
plt.tight_layout()
plt.show()
2. Harmonic analysis with UTide
analyse_harmonics is a thin wrapper around utide.solve that:
accepts a batch of positions simultaneously (
elevationsis(npositions, ntimes));re-sorts UTide’s output to match the requested constituent order;
skips positions with
NaNlatitudes (useful for MPI padding; not relevant here).
For a single gauge we pass elevations as shape (1, ntimes) and latitudes as [GAUGE_LAT].
The time series is first demeaned so that the harmonic amplitudes represent the tidal signal rather than the offset above chart datum.
[4]:
# Demean: harmonics describe variation, not absolute offset
mean_elev = np.nanmean(elevations)
elev_anomaly = elevations - mean_elev
# Convert datetimes to Modified Julian Days (what UTide expects)
times_mjd = date2num(dates, units=f'days since {MJD_ZERO_POINT} 00:00:00')
harmonics, predicted = analyse_harmonics(
times = times_mjd,
elevations= elev_anomaly.reshape(1, -1),
latitudes = np.array([GAUGE_LAT]),
predict = True,
constit = DEFAULT_CONSTIT,
verbose = False,
)
# Unpack: harmonics shape is (1, 2, nconsts)
# axis 1, index 0 = phase (degrees); index 1 = amplitude (m)
gauge_phase = harmonics[0, 0, :] # degrees
gauge_amplitude = harmonics[0, 1, :] # metres
reconstructed = predicted[0, :] # metres
print(f"{'Constituent':>12} {'Amplitude (m)':>14} {'Phase (deg)':>10}")
print('-' * 42)
for name, amp, phase in zip(DEFAULT_CONSTIT, gauge_amplitude, gauge_phase):
print(f'{name:>12} {amp:>14.4f} {phase:>10.2f}')
Constituent Amplitude (m) Phase (deg)
------------------------------------------
M2 1.6926 151.15
S2 0.6658 189.80
N2 0.3401 119.71
K2 0.2051 165.23
K1 0.0857 124.33
O1 0.0579 340.30
P1 0.0134 57.87
Q1 0.0169 294.61
M4 0.1122 119.75
MS4 0.0379 170.69
MN4 0.0624 94.59
3. TPXO10 harmonics at the gauge location
We use the same TPXO reader used elsewhere in pyfvcom2 to extract elevation harmonics at the Devonport position. A small bounding box around the gauge reduces memory usage when loading the global TPXO grid.
[5]:
# Build the per-constituent file dictionary
tpxo_h_files = {
c: f'{TPXO_DIR}/h_{c.lower()}_tpxo10_atlas_30_v2.nc'
for c in DEFAULT_CONSTIT
}
# Bounding box: 1° margin around the gauge
margin = 1.0
bbox = (GAUGE_LON - margin, GAUGE_LON + margin,
GAUGE_LAT - margin, GAUGE_LAT + margin)
h_reader = TPXOComplexHarmonicsReader(tpxo_h_files)
h_var_names = get_tpxo_complex_harmonics_names('zeta')
h_harmonics = h_reader.read_harmonics(
list(DEFAULT_CONSTIT), h_var_names,
fill_land=True, bbox=bbox, bbox_margin=0.1,
)
# Interpolate to the single gauge point
interp_coords = InterpolationCoordinates(
dates=None, x3=None,
x1=np.array([GAUGE_LON]),
x2=np.array([GAUGE_LAT]),
horizontal_coordinate_system='geographic',
vertical_coordinate_system='z',
)
h_result = TPXOInterpolator(h_harmonics).interpolate(interp_coords)
# h_result.amplitudes shape: (n_points, n_constituents) → take index 0
tpxo_amplitude = np.asarray(h_result.amplitudes)[0, :] # metres
tpxo_phase = np.asarray(h_result.phases)[0, :] # degrees
# Normalise TPXO phases to [0°, 360°) to match the UTide convention
tpxo_phase = tpxo_phase % 360
print(f"{'Constituent':>12} {'TPXO amp (m)':>13} {'TPXO phase (deg)':>14}")
print('-' * 44)
for name, amp, phase in zip(DEFAULT_CONSTIT, tpxo_amplitude, tpxo_phase):
print(f'{name:>12} {amp:>13.4f} {phase:>14.2f}')
Constituent TPXO amp (m) TPXO phase (deg)
--------------------------------------------
M2 1.6833 154.08
S2 0.5968 205.42
N2 0.3074 137.91
K2 0.1703 202.82
K1 0.0788 113.96
O1 0.0553 347.47
P1 0.0253 108.43
Q1 0.0148 298.30
M4 0.1531 131.60
MS4 0.1001 181.75
MN4 0.0557 98.86

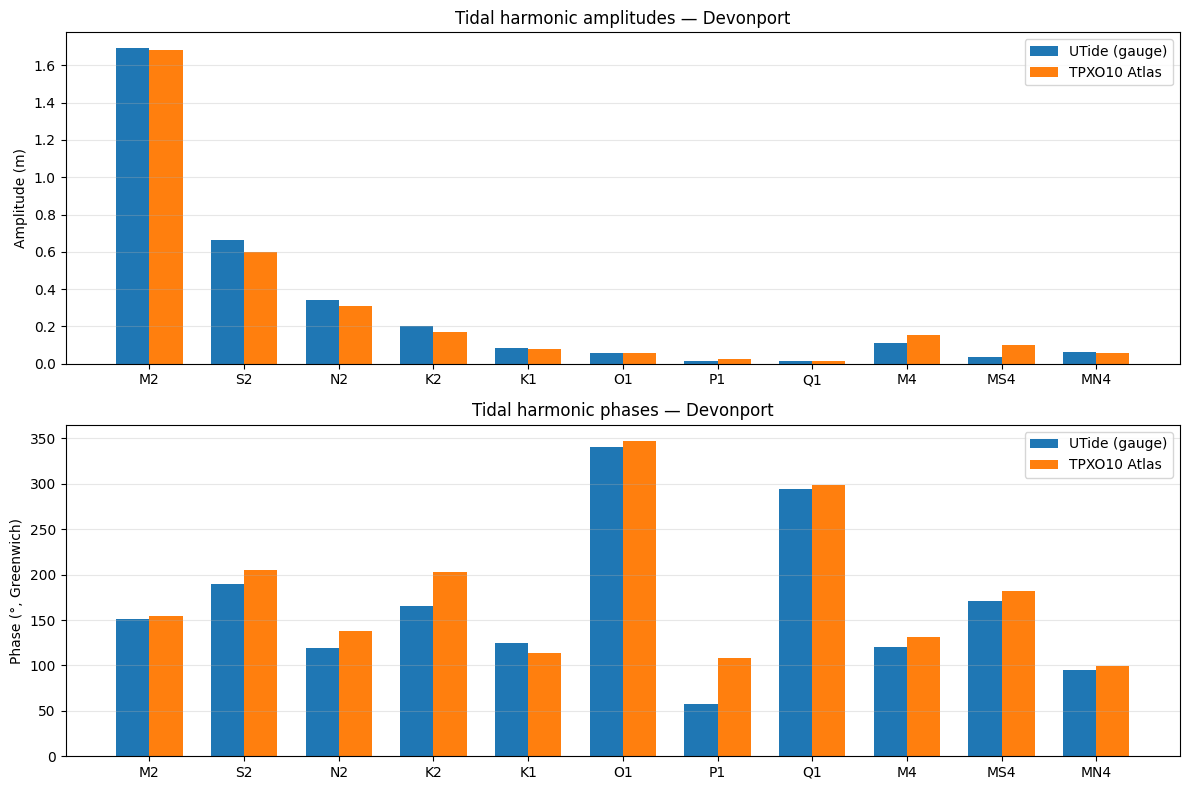

4. Comparison: UTide vs TPXO
Bar charts of amplitude and phase for each constituent.
A few things to keep in mind when interpreting the comparison:
UTide amplitudes come from a one-month record; seasonal effects and surge can bias individual constituent estimates slightly.
TPXO10 Atlas represents long-term tidal climatology — not December 2025 specifically.
Both phase sets use the Greenwich phase-lag convention and are normalised to [0°, 360°) for a consistent visual comparison.
Small shallow-water constituents (M4, MS4, MN4) may not be well resolved by TPXO at the coarse 30 arc-minute resolution.
[6]:
constit_labels = list(DEFAULT_CONSTIT)
x = np.arange(len(constit_labels))
w = 0.35
fig, axes = plt.subplots(2, 1, figsize=(12, 8))
# ── Amplitude ─────────────────────────────────────────────────────────────────
axes[0].bar(x - w/2, gauge_amplitude, w, label='UTide (gauge)', color='C0')
axes[0].bar(x + w/2, tpxo_amplitude, w, label='TPXO10 Atlas', color='C1')
axes[0].set_xticks(x)
axes[0].set_xticklabels(constit_labels)
axes[0].set_ylabel('Amplitude (m)')
axes[0].set_title('Tidal harmonic amplitudes — Devonport')
axes[0].legend()
axes[0].grid(True, axis='y', alpha=0.3)
# ── Phase ─────────────────────────────────────────────────────────────────────
axes[1].bar(x - w/2, gauge_phase, w, label='UTide (gauge)', color='C0')
axes[1].bar(x + w/2, tpxo_phase, w, label='TPXO10 Atlas', color='C1')
axes[1].set_xticks(x)
axes[1].set_xticklabels(constit_labels)
axes[1].set_ylabel('Phase (°, Greenwich)')
axes[1].set_title('Tidal harmonic phases — Devonport')
axes[1].legend()
axes[1].grid(True, axis='y', alpha=0.3)
plt.tight_layout()
plt.show()

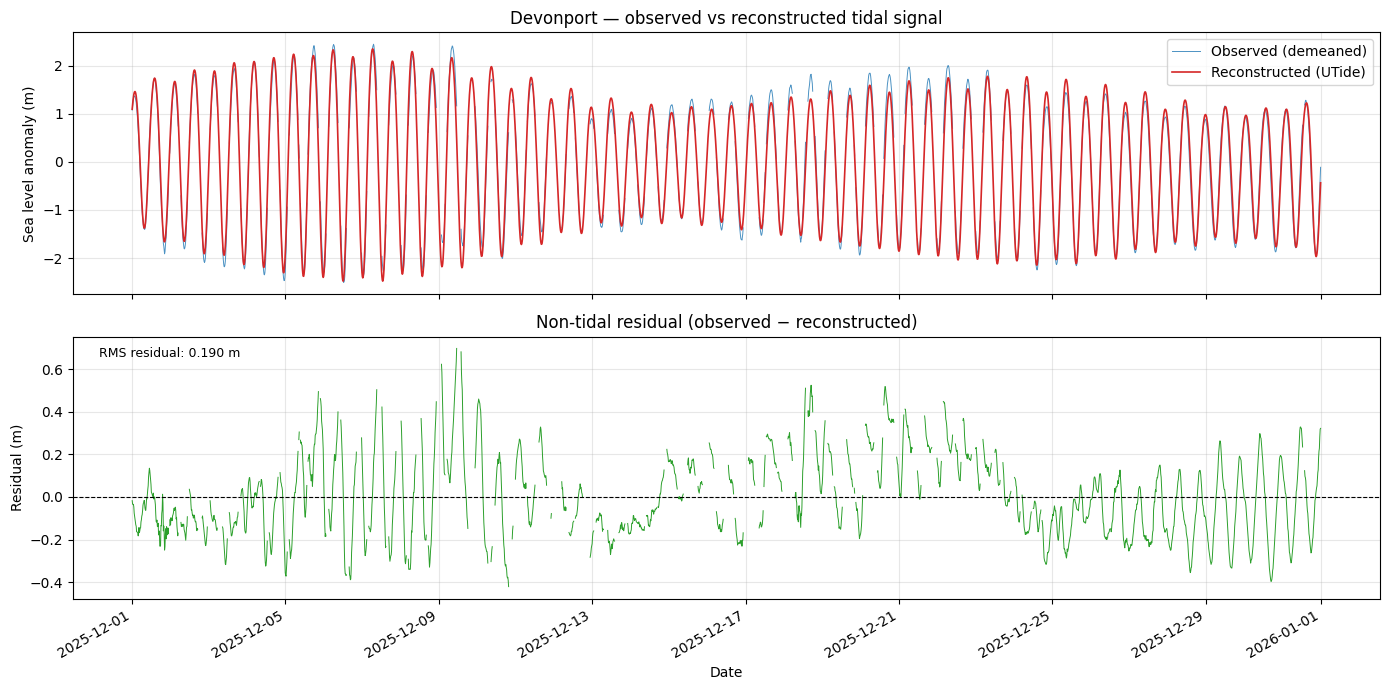

5. Reconstructed tide vs observations
UTide’s predict=True flag returned a time series reconstructed from the fitted harmonics. Overlaying it on the raw observations shows how well the harmonic model captures the observed signal, and makes the residual (surge + model error) visible.
[7]:
residual = elev_anomaly - reconstructed # non-tidal residual
fig, axes = plt.subplots(2, 1, figsize=(14, 7), sharex=True)
# Panel 1: observed anomaly with reconstructed tide
axes[0].plot(dates, elev_anomaly, lw=0.7, color='C0', alpha=0.8, label='Observed (demeaned)')
axes[0].plot(dates, reconstructed, lw=1.2, color='C3', label='Reconstructed (UTide)')
axes[0].set_ylabel('Sea level anomaly (m)')
axes[0].set_title('Devonport — observed vs reconstructed tidal signal')
axes[0].legend(loc='upper right')
axes[0].grid(True, alpha=0.3)
# Panel 2: non-tidal residual
axes[1].plot(dates, residual, lw=0.7, color='C2')
axes[1].axhline(0, color='k', lw=0.8, ls='--')
axes[1].set_ylabel('Residual (m)')
axes[1].set_xlabel('Date')
axes[1].set_title('Non-tidal residual (observed − reconstructed)')
axes[1].grid(True, alpha=0.3)
rms = np.sqrt(np.nanmean(residual**2))
axes[1].text(0.02, 0.92, f'RMS residual: {rms:.3f} m',
transform=axes[1].transAxes, fontsize=9)
fig.autofmt_xdate()
plt.tight_layout()
plt.show()
