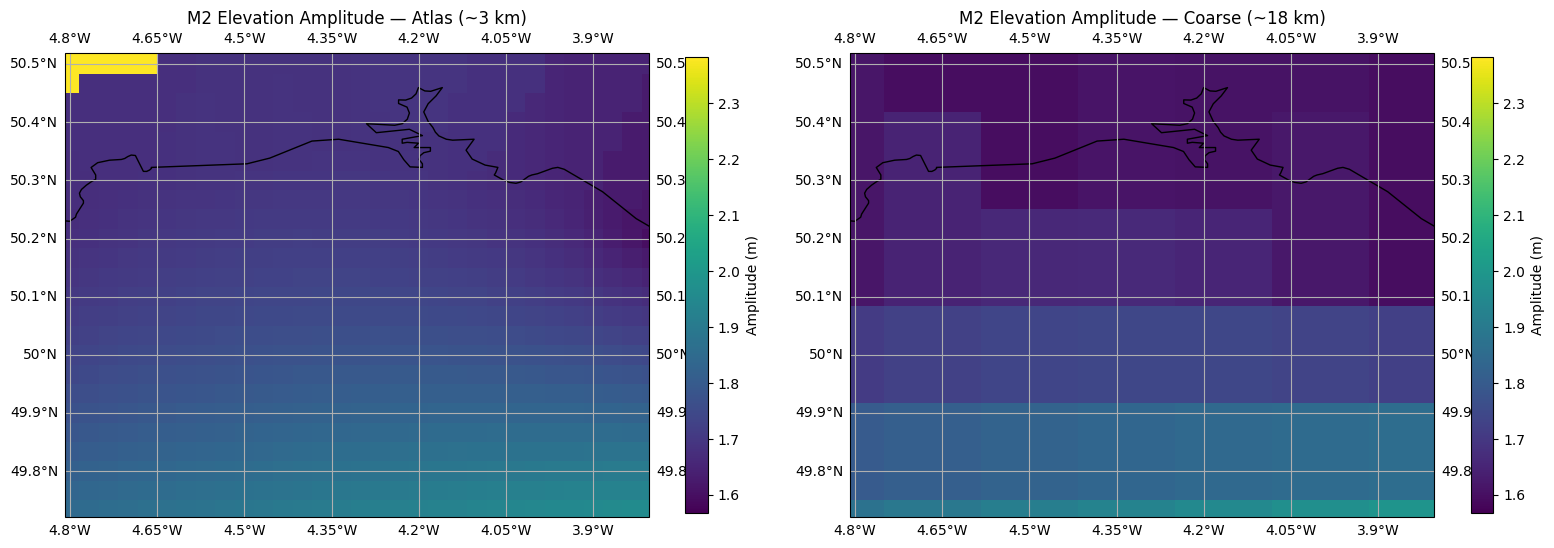

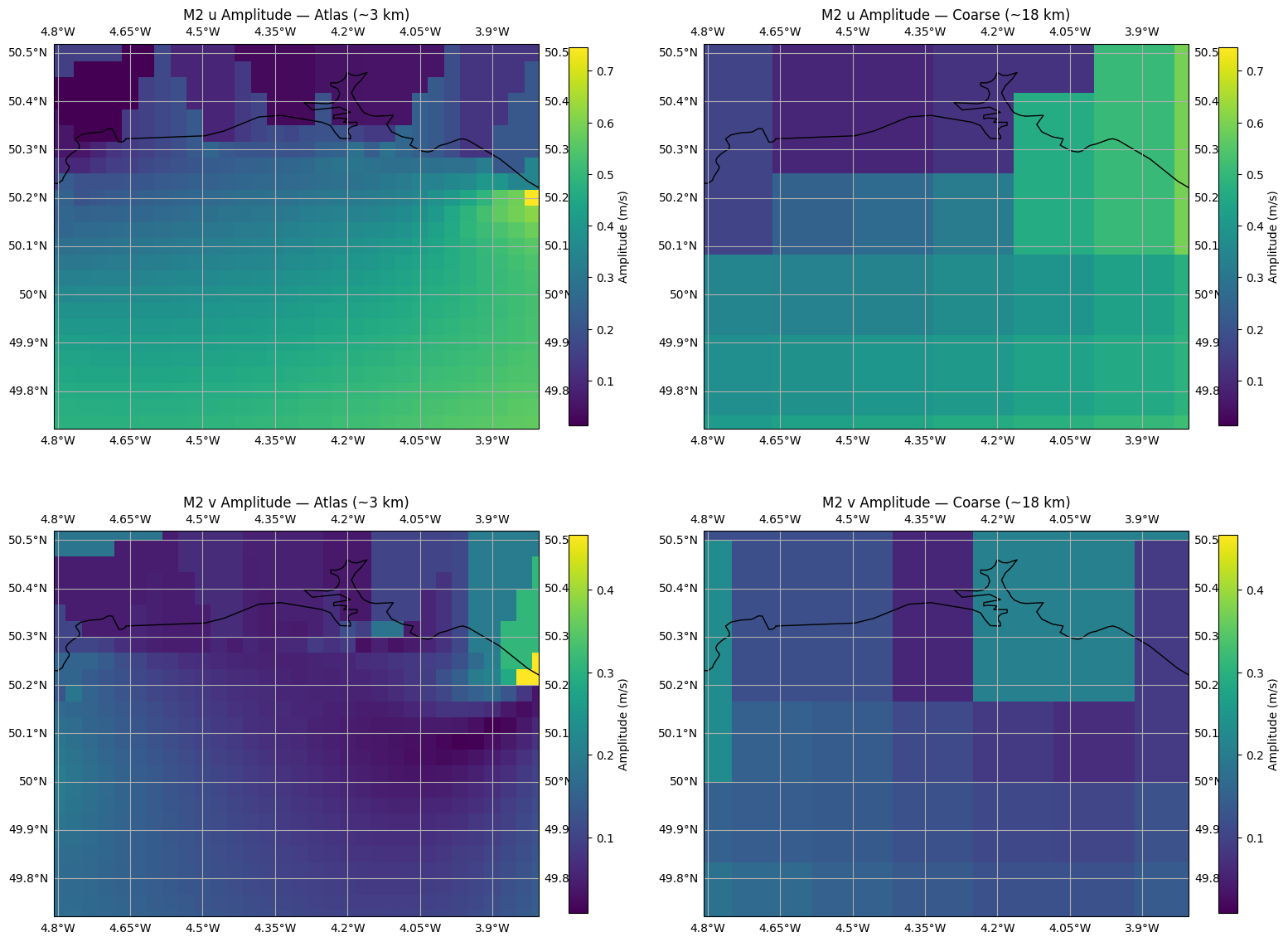

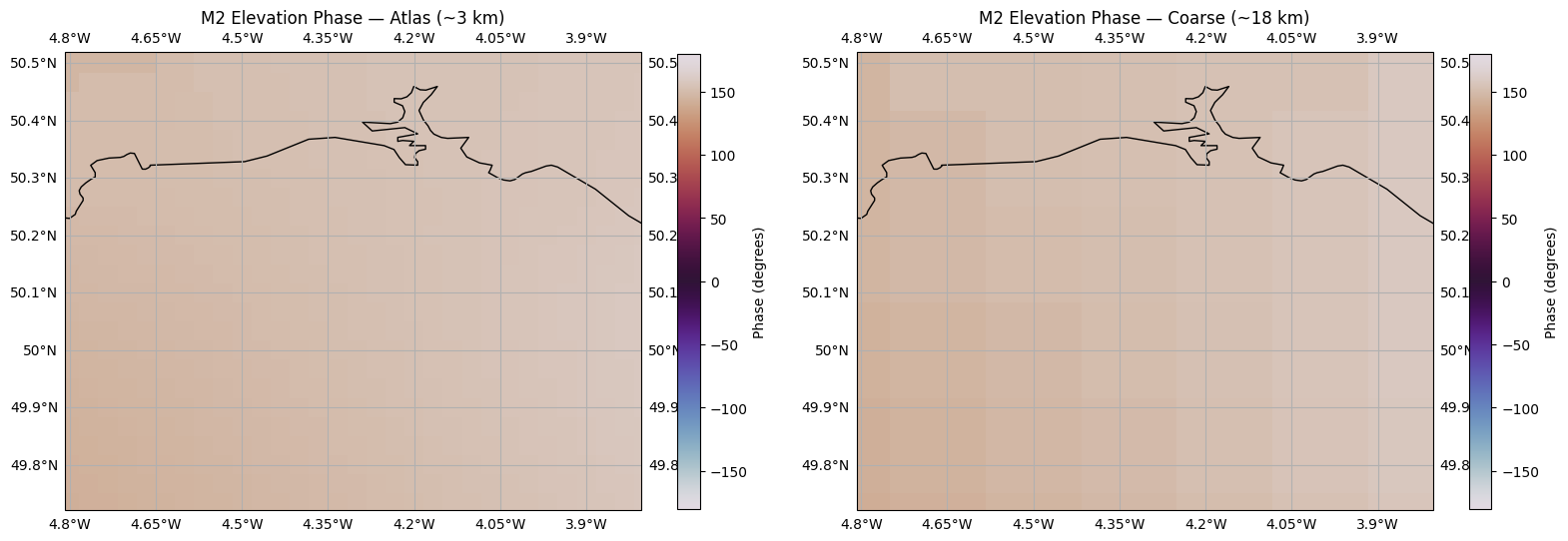

Comparing TPXO Atlas (High Resolution) vs TPXO Coarse Tidal Harmonics

This notebook investigates the impact of using high-resolution TPXO Atlas10v2 tidal harmonic data versus the coarser TPXO10v2 data when creating tidally adjusted nest forcing for an FVCOM model.

Datasets compared:

Dataset	Resolution	Files
TPXO Atlas10v2	~1/30° (~3 km)	Per-constituent files (e.g. `h_m2_tpxo10_atlas_30_v2.nc`)
TPXO10v2	~1/6° (~18 km)	Single files (`h_tpxo10.v2.nc`, `u_tpxo10.v2.nc`)

Both datasets are used to predict tides at FVCOM nest positions using CMEMS daily data as the background oceanographic forcing. Comparison plots show SSH (zeta) and surface velocity (u, v) time series at a selected nest node/element.

FVCOM domain: Tamar v2 (Plymouth Sound / Tamar Estuary)

1. Imports and Configuration

[1]:

import os
import pathlib
import numpy as np
import matplotlib.pyplot as plt
from datetime import datetime, timedelta

from pyfvcom2.tide_reader import TPXOComplexHarmonicsReader, get_tpxo_complex_harmonics_names
from pyfvcom2.interpolation import TPXOInterpolator, CMEMSInterpolator
from pyfvcom2.tide import TideManager
from pyfvcom2.file_utils import find_files
from pyfvcom2.date_utils import create_datetime_array
from pyfvcom2.grid import create_grid
from pyfvcom2.cmems_reader import CMEMSReader
from pyfvcom2.nest import NestManager

/local1/data/scratch/jcl/miniconda/miniconda3/envs/pyfvcom2/lib/python3.11/site-packages/numpy/lib/_format_impl.py:838: VisibleDeprecationWarning: dtype(): align should be passed as Python or NumPy boolean but got `align=0`. Did you mean to pass a tuple to create a subarray type? (Deprecated NumPy 2.4)
  array = pickle.load(fp, **pickle_kwargs)

[2]:

# Tidal constituents
constituents = ['M2', 'S2', 'K1', 'O1']

# Data directory
data_dir = os.path.expanduser('~/data/pyfvcom2_doc')

# --- Atlas (high resolution) ---
atlas_data_dir = f'{data_dir}/TPXO/DATA/Atlas10v2'
atlas_h_files = {
    c: f'{atlas_data_dir}/h_{c.lower()}_tpxo10_atlas_30_v2.nc'
    for c in constituents
}
atlas_u_files = {
    c: f'{atlas_data_dir}/u_{c.lower()}_tpxo10_atlas_30_v2.nc'
    for c in constituents
}
atlas_bathy_file = f'{atlas_data_dir}/grid_tpxo10atlas_v2.nc'

# --- Coarse TPXO10v2 ---
coarse_data_dir = f'{data_dir}/TPXO/DATA'
coarse_h_file = f'{coarse_data_dir}/h_tpxo10.v2.nc'
coarse_u_file = f'{coarse_data_dir}/u_tpxo10.v2.nc'
coarse_bathy_file = f'{coarse_data_dir}/grid_tpxo10v2.nc'

# CMEMS and FVCOM configuration
cmems_data_dir = f'{data_dir}/CMEMS_NWS_reanalysis_7_km/Daily'
fvcom_data_dir = f'{data_dir}/FVCOM_tamar_estuary'
grid_file = f'{fvcom_data_dir}/tamar_v2_grd.dat'
obc_file = f'{fvcom_data_dir}/tamar_v2_obc.dat'
sigma_file = f'{fvcom_data_dir}/sigma_gen.dat'

# Time period
start_date_time = datetime.strptime('20251214', '%Y%m%d')
end_date_time = datetime.strptime('20251215', '%Y%m%d')
date_times = create_datetime_array(start_date_time, end_date_time, timedelta(hours=1))

print(f'Time period: {start_date_time} to {end_date_time}')
print(f'Number of time steps: {len(date_times)}')

Time period: 2025-12-14 00:00:00 to 2025-12-15 00:00:00
Number of time steps: 25

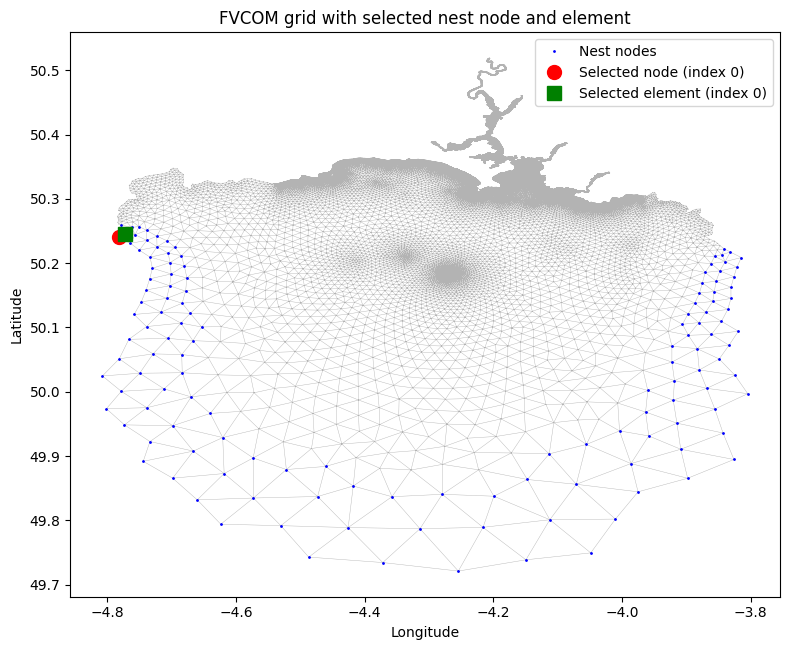

2. Build the FVCOM Grid and NestManager

[3]:

fvcom_grid = create_grid(
    grid_file,
    mesh_type='fvcom',
    sigma_file=sigma_file,
    coordinate_system='cartesian',
    epsg_code='32630',
    obc_filename=obc_file,
)

# Bounding box from the FVCOM grid (used for TPXO subsetting)
bbox = (
    fvcom_grid.lon_nodes.min(), fvcom_grid.lon_nodes.max(),
    fvcom_grid.lat_nodes.min(), fvcom_grid.lat_nodes.max(),
)

print(f'Nodes: {fvcom_grid.n_nodes}, Elements: {fvcom_grid.n_elements}')
print(f'Domain bbox: lon [{bbox[0]:.3f}, {bbox[1]:.3f}], lat [{bbox[2]:.3f}, {bbox[3]:.3f}]')

Nodes: 39910, Elements: 75400
Domain bbox: lon [-4.808, -3.804], lat [49.721, 50.519]

3. Create NestManager and Add CMEMS Forcing

Both the Atlas and coarse runs share the same CMEMS background forcing. We create two separate NestManager instances so each can have its own tidal data while sharing identical CMEMS fields.

[4]:

def create_nest_manager_with_cmems(fvcom_grid, date_times, cmems_data_dir, start_date_time, end_date_time):
    """Create a NestManager and add CMEMS forcing data."""
    nm = NestManager(
        fvcom_grid,
        num_grid_bands=2,
        weights_calculation_method='linear',
    )
    nm.set_dates(date_times)

    # 2D data (SSH)
    data_dir_2d = pathlib.Path(cmems_data_dir, '2D')
    files_2d = find_files(data_dir_2d, 'cmems', start_date_time, end_date_time, tolerance_hours=1)
    cmems_reader_2d = CMEMSReader(files_2d, reference_var_name='zos')
    cmems_interp_2d = CMEMSInterpolator(cmems_reader_2d)
    nm.add_forcing_data(cmems_interp_2d, 'zeta', horizontal_position='node')

    # 3D data (currents)
    data_dir_3d = pathlib.Path(cmems_data_dir, '3D')
    files_uv = find_files(data_dir_3d, 'cmems_mod_nws_phy-uv', start_date_time, end_date_time, tolerance_hours=1)
    cmems_reader_uv = CMEMSReader(files_uv, reference_var_name='uo')
    cmems_interp_uv = CMEMSInterpolator(cmems_reader_uv)
    for var in ('u', 'v'):
        nm.add_forcing_data(cmems_interp_uv, var, horizontal_position='element')

    return nm

nest_atlas = create_nest_manager_with_cmems(fvcom_grid, date_times, cmems_data_dir, start_date_time, end_date_time)
nest_coarse = create_nest_manager_with_cmems(fvcom_grid, date_times, cmems_data_dir, start_date_time, end_date_time)

print(f'Nest nodes: {len(nest_atlas.get_all_nest_nodes())}')
print(f'Nest elements: {len(nest_atlas.get_all_nest_elements())}')
print('CMEMS forcing added to both NestManagers')
